SMOKE SENSOR

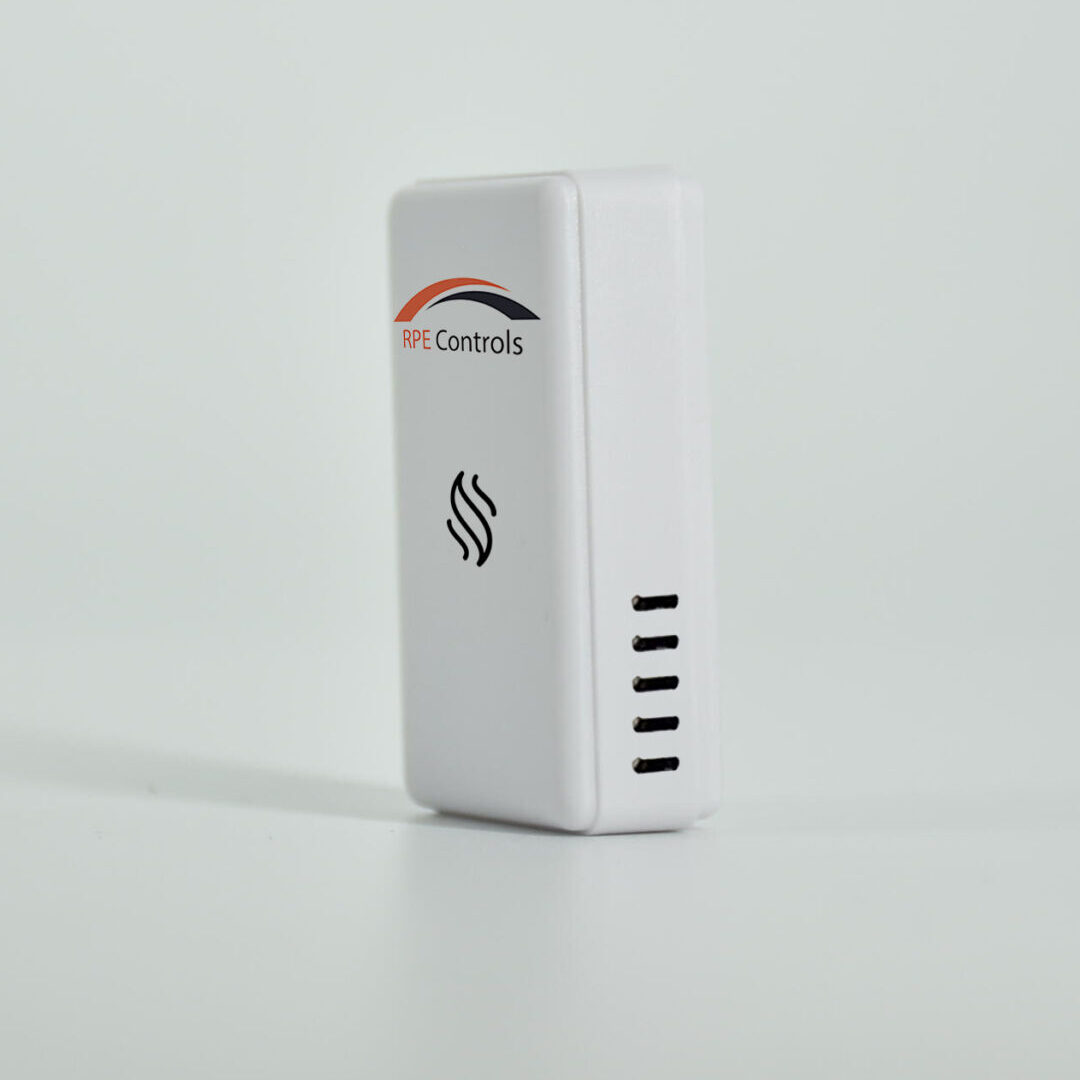

Smoke Sensor Device
Discover the ultimate guardian for your safety – our cutting-edge Smoke Sensors. With their exceptional sensitivity, our sensors swiftly detect even the slightest traces of smoke, ensuring early detection of fire hazards. Embrace peace of mind with our state-of-the-art Smoke Sensors, designed to safeguard your home or business. Invest in reliable and advanced technology to protect what matters most – choose our unmatched Smoke Sensors for unparalleled security.
FEATURES
- Determines the type of smoke (wood/plastic etc.)
- Setting thresholds
- Clustering sensors together
- Associate (create conditions/relationships)
Set monitoring timers
TECHNICAL SPECIFICATIONS
Processed output | 0-500 VOC Index |
Measurement range | 0 - 1000 ppm |
Response time | (τ63%)< 10s |
Device-to-device variation | ±15% m.v. |
Limit of detection | < 0.05 ppm of ethanol equivalents or < 10% |
Supply voltage | 1.7 - 3.6 Vdc |
Average supply current | 2600 uA |
Max. supply current | 3000 uA |
Communication Interfaces | Wireless protocol |
Size (LxWxH) | 24 x 47 x 14 mm³ |
Color | White |
Operation environment temperature | -10 to +50°C |
IP class | IP20 |
Power supply | Battery: coin (exchangeable) / LiPo (rechargeable) |
Battery life | 2 years |
AC-DC adapter | USB-C |
